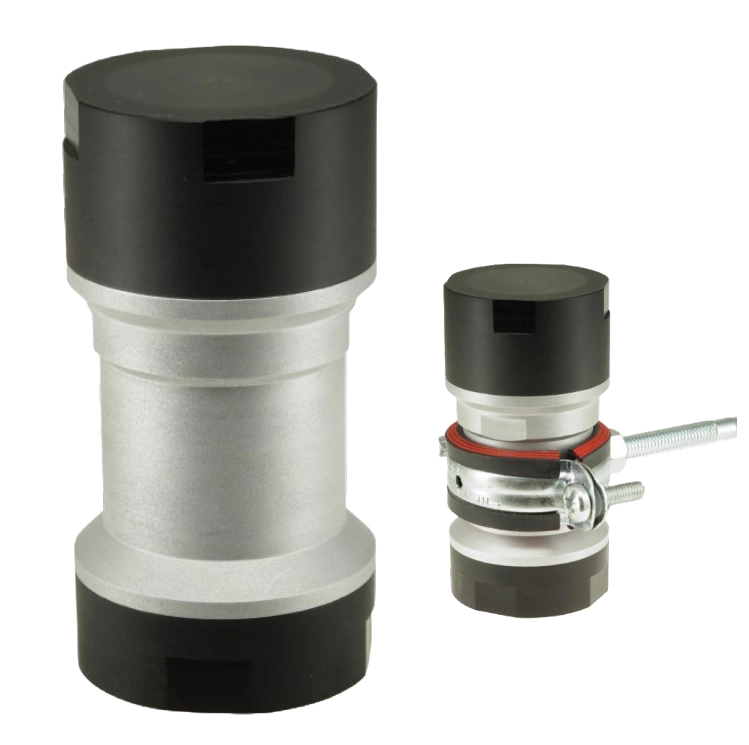

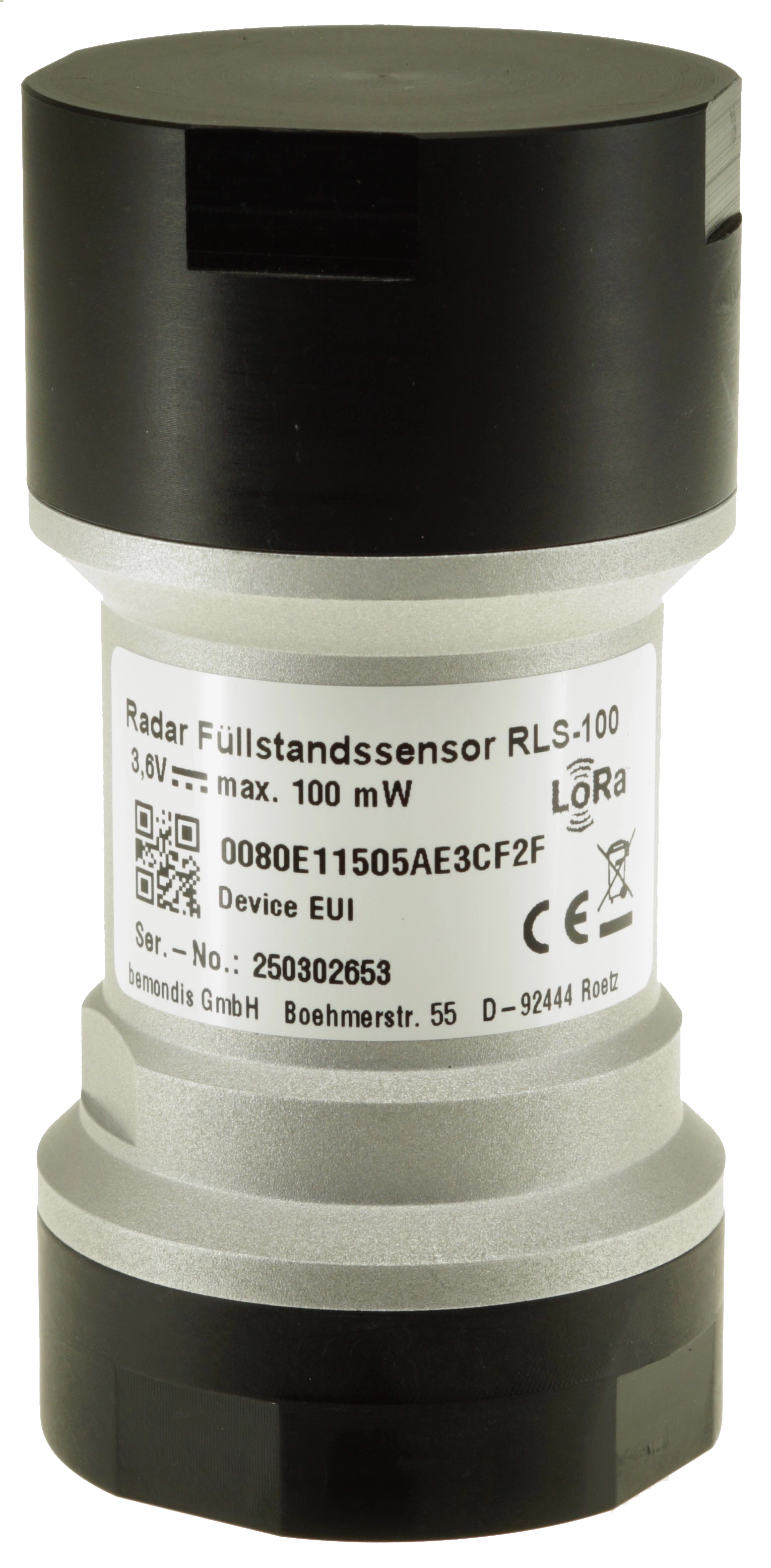

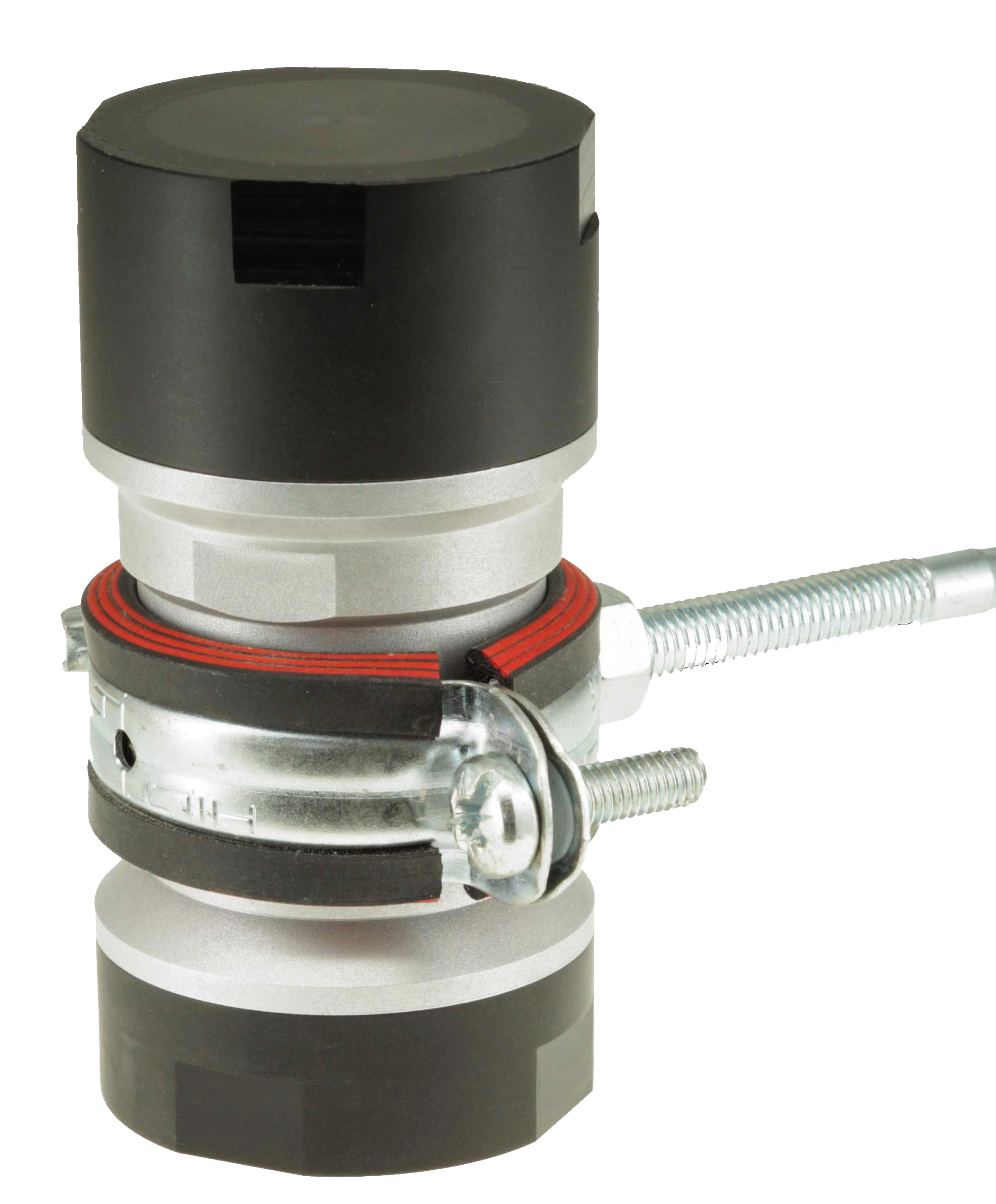

Radar Level Sensor RLS-100
Product Specification
- Measurement Principle: Level sensor with mm accuracy using 60 GHz radar
- Housing Material: Weather-resistant aluminum 6082
- Closures: UV-stable high-performance plastic
- Sustainability: Modular, robust design
- Maintenance: All components replaceable (e.g., battery, electronics, etc.)
- Energy Efficiency: Ultra Low Power operation around the clock
- Component Quality: Use of high-quality components
- Measurement Stability: Reliable results even with temperature fluctuations
- Battery: Long-lasting Li-SOCl₂ brand battery with LIC for pulse operation
- Origin: Electronics "Made in Germany" (hardware and software)
- Commissioning: Integrated on/off switch for easy handling
- Status Display: Integrated LED for status and signal level
- Information on scope of delivery and dimensions in the datasheet
Technical Data
LoRa Parameters
Optional Features
Downloads
Available Variants
Choose the right configuration for your requirements
Standard
RLS-100
The ideal solution for precise level measurement with mm accuracy.
- Accuracy 2.7…5.1 mm
- Range up to 10 m
- Ultra Low Power
- Battery lifetime > 10 years
- Made in Germany
More Variants
Further configurations and special versions are in planning.
- In Development
- Special Applications
- Customized
